Metalizirani polipropilen filmski kondenzator |Nizak df| CDBC

Karakteristike

◆ Low dissipation factor at high frequency
◆ High capacitance and dissipation factor stability
◆ Non-inductive construction
◆ Self-healing
◆ Flame retardant epoxy resin coating (compliant to UL 94V-0)

Specifikacije

Predmeti	Performans
Raspon radnog napona	100VDC, 250VDC, 400VDC, 630VDC
Nazivna temperatura	-40 ˚C ~ +85ºC
Upotrebljiva temperatura gornje kategorije	+105ºC (Derating ratio of rated voltage over +85˚C ~ +110º C: 1.5% per ºC of RatedVoltage)
Raspon kapaciteta	0.01 µF ~ 10 µF
Tolerancija na kapacitet	+3% (H), +5% (J), +10% (K)
Faktor disipacije	Khz	C < 0.1 µF	0.1 < C < 1.0 µF	1.0 < C < 3.0 µF	3.0 < C < 5.0 µF	5.0 < C < 10 µF
	1	< 0.10%
	100	< 0.40%	< 0.70%	< 1.20%	< 1.80%	< 2.80%
Otpor izolacije terminal na terminal	Voltage Charge: 100Vdc x 1 min (na 20˚C + 5˚C) > 30,000MΩ for C < 0.33µF > 10,000MΩ x µF for C > 0.33µF
Izdrži napon	Od terminala do terminala: (na 20˚C + 5˚C)
Nazivni napon pulsnog nagiba dV/dt (V/µs)	Teren VR		7.5mm	10mm	15mm	22.5mm	27.5mm
	100VDC		130	110	100	70	50
	250VDC		240	220	200	130	100
	400VDC		—	350	300	200	150
	630VDC		—	420	400	250	180



RELIABILITY TEST

Predmet	Test Metode	Zahtjevi
Otpornost na toplinu lemljenja IEC 60068-2-20	Solder Bath: 260ºC + 5ºC Immersion Time: 10sec + 1sec	Capacitance Change ІΔ C/C : <1% DF Change Δ tan δ : 0.1% at 1KHz IR: > granična vrijednost
Otpornost na vibracije IEC 60068-2-6	Frekvencijski opseg: 10Hz do 55Hz Amplitude: 1.5mm Trajanje: 6 sati	Neće biti vidljivih oštećenja, Nema povremenog kontakta, Nema otvorenog ili kratkog spoja
Vlažna vrućina, Stabilno stanje IEC 60068-2-3	Temperatura: 40ºC + 2ºC Relative Humidity: 90% do 95% Trajanje: 1,000 sati	Capacitance Change ІΔC/C І< : 3% DF Change Δ tan δ: 0.1% na 1KHz IR: > 50% granična vrijednost
Električna izdržljivost IEC 60384-17	Temperatura: 85ºC + 2ºC Voltage Applied: 1.25 x VR(DC) Trajanje: 2,000 sati	Capacitance Change ІΔC/CІ< : 3% DF Change Δ tan δ : 0.1% at 1KHz IR: > 50% granična vrijednost



Maksimalne dimenzije

	W.V.	100VDC (2A)					250VDC (2E)					400VDC (2G)					630VDC (2J)
(µF)	Kodeks	W	H	T	Str	d	W	H	T	Str	d	W	H	T	Str	d	W	H	T	Str	d
0.010	103											10.5	7.5	4.0	7.5	0.6	10.5	9.0	5.5	7.5	0.6
0.012	123											10.5	8.5	4.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6
0.015	153											10.5	9.0	4.5	7.5	0.6	10.5	10.5	6.0	7.5	0.6
0.018	183											10.5	9.5	4.5	7.5	0.6	10.5	11.0	6.5	7.5	0.6
0.022	223						10.5	7.5	4.0	7.5	0.6	10.5	10.0	5.0	7.5	0.6	13.0	10.0	6.0	10.0	0.6
0.027	273						10.5	8.0	4.0	7.5	0.6	10.5	10.5	5.5	7.5	0.6	13.0	11.0	6.5	10.0	0.6
0.033	333						10.5	8.5	4.5	7.5	0.6	10.5	11.0	6.0	7.5	0.6	13.0	11.5	7.0	10.0	0.6
0.039	393						10.5	9.0	4.5	7.5	0.6	13.0	11.0	5.5	10.0	0.6	13.0	12.0	8.0	10.0	0.6
0.047	473	10.5	7.5	4.0	7.5	0.6	10.5	10.0	4.5	7.5	0.6	13.0	11.0	5.5	10.0	0.6	13.0	13.0	8.0	10.0	0.6
0.056	563	10.5	8.0	4.0	7.5	0.6	10.5	10.5	5.0	7.5	0.6	13.0	11.5	6.0	10.0	0.6	13.0	14.0	9.0	10.0	0.6
0.068	683	10.5	9.0	4.5	7.5	0.6	10.5	11.0	5.5	7.5	0.6	13.0	12.5	6.5	10.0	0.6	18.0	12.5	7.0	15.0	0.8
0.082	823	10.5	9.5	4.5	7.5	0.6	10.5	11.5	6.0	7.5	0.6	13.0	13.0	7.0	10.0	0.6	18.0	13.0	7.5	15.0	0.8
0.10	104	10.5	10.0	5.0	7.5	0.6	10.5	12.0	6.5	7.5	0.6	13.0	13.5	8.0	10.0	0.6	18.0	14.0	8.0	15.0	0.8
0.12	124	10.5	10.0	5.5	7.5	0.6	13.0	11.5	6.0	10.0	0.6	18.0	12.0	6.0	15.0	0.8	18.0	15.5	8.0	15.0	0.8
0.15	154	10.5	11.0	6.0	7.5	0.6	13.0	12.0	6.5	10.0	0.6	18.0	12.5	7.0	15.0	0.8	18.0	16.5	9.0	15.0	0.8
0.18	184	10.5	11.5	6.5	7.5	0.6	13.0	12.5	7.0	10.0	0.6	18.0	13.5	8.5	15.0	0.8	18.0	17.5	10.0	15.0	0.8
0.22	224	13.0	11.5	6.0	10.0	0.6	13.0	13.0	7.5	10.0	0.6	18.0	15.0	8.0	15.0	0.8	18.0	18.5	11.5	15.0	0.8
0.27	274	13.0	12.0	6.5	10.0	0.6	18.0	13.0	6.0	15.0	0.8	18.0	16.0	8.5	15.0	0.8	25.5	18.0	9.0	22.5	0.8
0.33	334	13.0	13.0	7.0	10.0	0.6	18.0	14.0	6.5	15.0	0.8	18.0	17.0	9.5	15.0	0.8	25.5	19.0	10.0	22.5	0.8
0.39	394	13.0	13.5	7.5	10.0	0.6	18.0	14.5	7.0	15.0	0.8	18.0	18.0	10.5	15.0	0.8	25.5	20.0	11.0	22.5	0.8
0.47	474	13.0	14.0	8.5	10.0	0.6	18.0	15.0	8.0	15.0	0.8	25.5	16.0	9.0	22.5	0.8	20.5	20.5	12.0	17.5	0.8
																	25.5	21.0	12.0	22.5	0.8
0.56	564	18.0	14.0	7.0	15.0	0.8	18.0	16.0	8.5	15.0	0.8	25.5	17.0	10.0	22.5	0.8	25.5	22.5	13.5	22.5	0.8
0.68	684	18.0	15.0	7.5	15.0	0.8	18.0	17.0	9.5	15.0	0.8	25.5	18.0	11.0	22.5	0.8	25.5	24.0	15.0	22.5	0.8
0.82	824	18.0	15.5	8.0	15.0	0.8	18.0	18.5	10.0	15.0	0.8	25.5	20.0	11.0	22.5	0.8	25.5	25.5	16.5	22.5	0.8
1.00	105	18.0	16.5	9.0	15.0	0.8	18.0	20.0	11.0	15.0	0.8	25.5	21.5	12.5	22.5	0.8	26.0	16.5	12.0	22.5	0.8
																	31.5	25.0	16.0	27.5	0.8
1.20	125	18.0	17.5	10.0	15.0	0.8	25.5	18.0	9.0	22.5	0.8	25.5	23.0	14.0	22.5	0.8	31.5	27.0	18.0	27.5	0.8
1.50	155	18.0	18.5	11.5	15.0	0.8	25.5	19.5	10.5	22.5	0.8	25.5	24.5	15.5	22.5	0.8
1.80	185	25.5	18.0	9.0	22.5	0.8	25.5	20.5	11.5	22.5	0.8
2.20	225	25.5	19.0	10.0	22.5	0.8	25.5	22.0	13.0	22.5	0.8
2.70	275	25.5	20.0	11.5	22.5	0.8	25.5	23.5	14.5	22.5	0.8
3.30	335	25.5	24.5	15.5	22.5	0.8	25.5	25.5	16.0	22.5	0.8



Primjer broja dijelova – BULK

Primjer broja dijelova – RADIAL TAPED

CAPACITANCE

µF	0.01	0.047	0.1	0.47	1.0	3.3
PF	10,000	47,000	100,000	470,000	–	–
Kodeks	103	473	104	474	105	335



KOD TOLERANCIJE

Kodeks	Tolerancija
J	+ 5%
K	+ 10%
M	+ 20%



Nazivni napon

W.V.	100	250	400	630
Kodeks	2A	2E	2G	2J



Kod trake (See Diagrams)

Razmak	7.5mm	10mm	15mm
Pakiranje	Ili r	A	A
Kodeks	RT2	RT3	RT4



Primjeri olovnog stila

RADIJALNI RAZMAK VODOVA

* Odvodni prostor je neformirani originalni vodeći prostor ravnog odvoda.

mm	7.5	10	15	22.5	27.5
Kodeks	075	100	150	225	275



Dužina olova od aviona za sjedenje (if bulk pack)

mm	5	10	15	20	25
Kodeks	050	100	150	200	250



Pakovanje

Met	od	Rasuti	Municija	Kolut
Kodeks		B	A	R



Olovni stil

Kodeks	Stil
S	Ravno
K	Ulaziti (Izdvojiti)
F	Oblikovati
Ja	Obrazac u

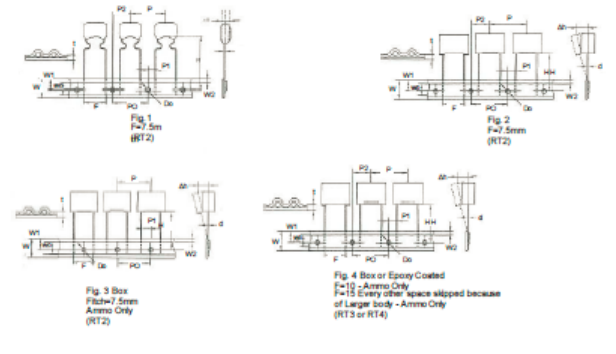

KODNI DIJAGRAM RADIJALNOG TAPIRANJA

Specifikacije

Opis	Pismo	Dimenzija (mm)					Opis	Pismo	Dimenzija (mm)
		RT1	RT2	RT3	RT4	Tol.			RT1	RT2	RT3	RT4	Tol.
Prečnik olova žice	d	0.5 / 0.6	0.5 / 0.6	0.6	0.6 / 0.8	+ 0.05	Širina trake nosača	W	18	18	18	18	+ 1;-0.5
Tape Pitch	Str	12.7	12.7	12.7	25.4	+ 1	Držite vrpcu	Wo	6	6	9	10	Min
Teren za hranu	Po	12.7	12.87	12.7	12.7	+ 0.2	Položaj rupe	W1	9	9	9	9	+ 0.5
Centriranje vodeće žice	P1	3.85	2.6 / 3.75	7.7	5.2	+ 0.7	Držite položaj vrpce	W2	3	3	3	3	Max
Centriranje tela	P2	6.35	6.35	12.7	12.7	+ 1.3	Promjer otvora za hrani	Učiniti	4	4	4	4	+ 0.2
Razmak vode (Teren)	F	5	7.5	10	15	+ 0.6;-0.1	Debljina trake	t	0.7	0.7	0.7	0.07	+ 0.2
Poravnavanje komponente	ΔH	0	0	0	0	+ 2	Figura	smokva	1 ili 2	1.2 ili 3	4	4
Visina komponeta iz vrpce	H	18.5	18.5	18.5	18.5	+ 0.5

Primedba: *Dodatak akumulirane visine manje od 1 mm na sumu 20 parcele.

*Neprekidna prazna komponenta manja od 3 uzastopni komadi.

*Ukupno prazno na jednoj reel manji od 1%.

Uvođenje
CDBC series are constructed with metalized polypropylene film dielectric, copperply lead and flame retardant epoxy resin coating. Suitable blocking, by- pass, spojnica, razdvajanje, filtriranje, timing, tuning, temperature compensation and ideal for use in ballasts, switching power supplies, telecommunication equipment, industrial instruments, Automatski upravljački sustavi i drugu opću elektroničku opremu.
