Generalni porpuse metalizirani polisterski kondenzator filma | CDAB

Karakteristike

◆ Raspon temperature: -40~115℃
◆ Raspon kapaciteta: 0.01~10uF
◆ Tolerancija na kapacitet: 5% 10% 20%
◆ Nazivni napon 100VDC ~ 630VDC

Primjer broja dijelova

Tolerancija

Kodeks	Tolerancija
J	+ 5%
K	+ 10%
M	+ 20%

Kod kapaciteta

F	0.01	0.047	0.1	0.47	1.0	4.7	10
PF	10000	47000	100000	470000	–	–	–
Kodeks	103	473	104	474	105	475	106

Nazivni napon

WV	100	250	400	630
Kodeks	2A	2E	2G	2J

Primjeri olovnog stila

Pakovanje

Met	od	Rasuti	Municija	Kolut
Kodeks		B	A	R

Kod trake (Razmak između elektroda na traci, ako se zalepi)

Razmak	5.0mm	7.5mm	10mm	15mm
Pakiranje	Ili r	Ili r	A	A
Kodeks	RT1	RT2	RT3	RT4

RADIJALNI RAZMAK VODOVA

* Odvodni prostor je neformirani originalni vodeći prostor ravnog odvoda

mm	5.0	7.5	10	15	22.5	27.5
Kodeks	050	075	100	150	225	275

Dužina olova od aviona za sjedenje

(Bulk Pack i je + 1mm kada < 10mm, inače je nominalno)

mm	5	10	15	20	25
Kodeks	050	100	150	200	250

Olovni stil

Kodeks	Stil
S	Ravno
K	Ulaziti (Izdvojiti)
F	Form Out**
Ja	Obrazac u**

** Za skupno pakovanje sa formiranim vodičima, Dodajte dodatni 3 Kod razmake vode na kraju broja dijela.

Maksimalne dimenzije (mm)

	W . V.	1 0 0 V D C ( 2 A )					2 5 0 V D C ( 2 E )					4 0 0 V D C ( 2 G ) / 4 5 0 V D C ( 2 W )					6 3 0 V D C ( 2 J )
m F	C o d e	W	H	T	Str	d F	W	H	T	Str	d F	W	H	T	Str	d F	W	H	T	Str	d F
0 .0 1	1 0 3																13 .0	8 .0	5.0	10 .0	0 .6
0 .0 1 2	1 2 3																13 .0	8 .5	5.0	10 .0	0 .6
0 .0 1 5	1 5 3											10 .5	8.0	4 .5	7.5	0 .6	13 .0	9 .5	5.5	10 .0	0 .6
0 .0 1 8	1 8 3											10 .5	8.5	5 .0	7.5	0 .6	13 .0	11 .0	5.5	10 .0	0 .6
0 .0 2 2	2 2 3											10 .5	8.5	5 .0	7.5	0 .6	13 .0	11 .5	6.0	10 .0	0 .6
0 .0 2 7	2 7 3											10 .5	9.0	5 .5	7.5	0 .6	13 .0	12 .0	6.5	10 .0	0 .6
0 .0 3 3	3 3 3											10 .5	9.5	6 .0	7.5	0 .6	13 .0	12 .5	7.0	10 .0	0 .6
0 .0 3 9	3 9 3						10 .5	8 .0	4 .0	7 .5	0 .6	13 .0	8.5	4 .5	10 .0	0 .6	13 .0	14 .0	7.0	10 .0	0 .6
0 .0 4 7	4 7 3						10 .5	8 .0	4 .5	7 .5	0 .6	9.5	7.5	4 .0	7.5	0 .6	13 .0	9 .0	5 .5	10 .0	0 .6
												13 .0	9.0	5 .0	10 .0	0 .6
0 .0 5 6	5 6 3						10 .5	8 .5	5 .0	7 .5	0 .6	13 .0	9.5	5 .5	10 .0	0 .6	18 .5	11 .0	5.5	15 .0	0 .8
0 .0 6 8	6 8 3						10 .5	8 .5	5 .0	7 .5	0 .6	13 .0	11 .0	5 .5	10 .0	0 .6	18 .5	11 .5	6.0	15 .0	0 .8
0 .0 8 2	8 2 3						10 .5	9 .5	5 .5	7 .5	0 .6	13 .0	11 .5	5 .5	10 .0	0 .6	18 .5	12 .0	6.5	15 .0	0 .8
0 .1	1 0 4	10 .5	7 .5	4.0	7 .5	0 .6	10 .5	10 .0	6 .0	7 .5	0 .6	12 .0	9.0	5 .0	10 .0	0 .6	18 .5	12 .0	6.0	15 .0	0 .8
0 .1 2	1 2 4	10 .5	7 .5	4.0	7 .5	0 .6	10 .5	10 .5	6 .5	7 .5	0 .6	18 .5	10 .5	5 .0	15 .0	0 .8	18 .5	14 .5	7.0	15 .0	0 .8
0 .1 5	1 5 4	10 .5	8 .0	4.5	7 .5	0 .6	10 .5	11 .0	7 .0	7 .5	0 .6	18 .5	11 .5	5 .5	15 .0	0 .8	18 .5	15 .5	8.0	15 .0	0 .8
0 .1 8	1 8 4	10 .5	8 .5	5.0	7 .5	0 .6	13 .0	9 .0	4 .5	10 .0	0 .6	18 .5	12 .0	6 .0	15 .0	0 .8	18 .5	16 .0	8.5	15 .0	0 .8
0 .2 2	2 2 4	10 .5	8 .5	5 .0	7 .5	0 .6	10 .3	11 .0	6 .1	7 .5	0 .6	11 .3	4.3	7 .0	10 .0	0 .8	11 .3	11 .3	7.0	10 .0	0 .6
							13 .0	11 .0	5 .0	10 .0	0 .6	18 .5	13 .5	6 .0	15 .0	0 .8	18 .5	16 .5	9.0	15 .0	0 .8
0 .2 7	2 7 4	10 .5	9 .5	5.5	7 .5	0 .6	13 .0	11 .5	6 .0	10 .0	0 .6	18 .5	14 .0	7 .0	15 .0	0 .8	26 .5	16 .5	7.5	22 .5	0 .8
0 .3 3	3 3 4	10 .5	10 .0	6 .0	7 .5	0 .6	12 .0	12 .0	6 .5	7 .5	0 .6	12 .0	12 .0	7 .5	10 .0	0 .6	26 .5	17 .0	8 .5	22 .5	0 .8
							13 .0	12 .0	6 .5	10 .0	0 .6	18 .5	15 .0	7 .5	15 .0	0 .8
0 .3 9	3 9 4	10 .5	10 .5	6.0	7 .5	0 .6	18 .0	9 .0	5 .0	15 .0	0 .6	18 .5	15 .5	8 .5	15 .0	0 .8	26 .5	17 .0	9.0	22 .5	0 .8
0 .4 7	4 7 4	10 .5	12 .0	6.0	7 .5	0 .6	18 .5	13 .0	5 .5	15 .0	0 .8	18 .5	17 .5	8 .5	15 .0	0 .8	26 .5	18 .0	10 .0	22 .5	0 .8
0 .5 6	5 6 4	13 .0	11 .0	5.5	10 .0	0 .6	18 .5	13 .0	6 .0	15 .0	0 .8	26 .0	16 .0	7 .5	22 .5	0 .8	26 .5	18 .0	11 .0	22 .5	0 .8
0 .6 8	6 8 4	13 .0	11 .5	6.0	10 .0	0 .6	18 .5	13 .5	6 .0	15 .0	0 .8	26 .0	17 .0	8 .0	22 .5	0 .8	26 .0	21 .5	12 .5	22 .5	0 .8
0 .8 2	8 2 4	13 .0	13 .0	6.0	10 .0	0 .6	18 .5	14 .0	7 .0	15 .0	0 .8	26 .0	17 .5	9 .0	22 .5	0 .8	31 .0	21 .0	12 .0	27 .5	0 .8
1	1 0 5	13 .0	14 .0	6.5	10 .0	0 .6	18 .5	15 .0	8 .5	15 .0	0 .8	26 .0	18 .5	1 0 .0	22 .5	0 .8	31 .0	22 .0	13 .5	27 .5	0 .8
1 .2	1 2 5	18 .5	12 .5	5.5	15 .0	0 .8	18 .5	15 .5	8 .5	15 .0	0 .8	26 .0	20 .0	1 1 .0	22 .5	0 .8	31 .0	23 .5	15 .0	27 .5	0 .8
1 .5	1 5 5	18 .5	13 .5	6.0	15 .0	0 .8	18 .5	16 .5	9 .5	15 .0	0 .8	31 .0	19 .5	1 1 .0	27 .5	0 .8	31 .0	26 .5	16 .0	27 .5	0 .8
1 .8	1 8 5	18 .5	14 .0	6.5	15 .0	0 .8	26 .0	16 .0	7 .5	22 .5	0 .8	31 .0	21 .0	1 2 .0	27 .5	0 .8	31 .0	28 .0	18 .0	27 .5	0 .8
2 .2	2 2 5	18 .5	15 .0	7.0	15 .0	0 .8	26 .0	17 .0	8 .5	22 .5	0 .8	31 .0	23 .5	1 3 .0	27 .5	0 .8	31 .0	30 .5	20 .0	27 .5	0 .8
2 .7	2 7 5	18 .5	16 .0	7.5	15 .0	0 .8	26 .0	18 .0	9 .5	22 .5	0 .8
3 .3	3 3 5	18 .5	16 .5	8.5	15 .0	0 .8	26 .0	19 .0	10 .5	22 .5	0 .8
3 .9	3 9 5	26 .0	16 .0	7.0	22 .5	0 .8	26 .0	21 .5	10 .5	22 .5	0 .8
4 .7	4 7 5	26 .0	17 .0	7.5	22 .5	0 .8	26 .0	22 .0	12 .0	22 .5	0 .8
5 .6	5 6 5	26 .0	17 .5	8.0	22 .5	0 .8	31 .0	22 .0	12 .0	27 .5	0 .8
6 .8	6 8 5	26 .0	18 .5	9.0	22 .5	0 .8	31 .0	23 .5	13 .0	27 .5	0 .8
8 .2	8 2 5	26 .0	20 .0	10 .0	22 .5	0 .8	31 .0	25 .0	14 .5	27 .5	0 .8
1 0	1 0 6	26 .0	21 .0	11 .5	22 .5	0 .8	31 .0	26 .5	16 .5	27 .5	0 .8

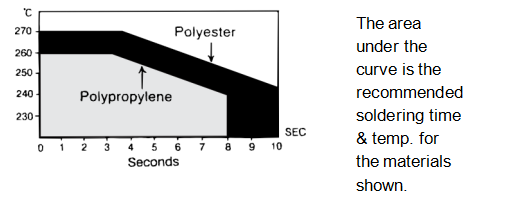

Lemljenje

KODNI DIJAGRAM RADIJALNOG TAPIRANJA

Specifikacije

Opis	Pismo	Dimenzija (mm)
		RT2	RT3	RT4	Tol.
Prečnik olova žice	d	0.5 / 0.6	0.6	0.6 / 0.8	+ 0.05
Tape Pitch	Str	12.7	12.7	25.4	+ 1
Nagib otvora za dovod	Po	12.7	12.7	12.7	+ 0.2
Centriranje vodeće žice	P1	2.6 / 3.75	7.7	5.2	+ 0.7
Centriranje tela	P2	6.35	12.7	12.7	+ 1.3
Razmak vode (Teren)	F	7.5	10	15	+ 0.6; -0.1
Poravnavanje komponente	Δh	0	0	0	+ 2
Visina komponeta iz vrpce	H	18.5	18.5	18.5	+ 0.5
Širina trake nosača	W	18	18	18	+ 1; -0.5
Držite vrpcu	Wo	6	9	10	Min
Položaj rupe	W1	9	9	9	+ 0.5
Držite položaj vrpce	W2	3	3	3	Max
Promjer otvora za hrani	Učiniti	4	4	4	+ 0.2
Debljina trake	t	0.5	0.5	0.5	+ 0.2
Figura	smokva	1.2 ili 3	4	4



Primedba: *Dodatak akumulirane visine manje od 1 mm na sumu 20 parcele.

*Neprekidna prazna komponenta manja od 3 uzastopni komadi.

*Ukupno prazno na jednoj reel manji od 1%.

Uvođenje
CDAB serija je izrađena od metaliziranog poliesterskog filma dielektrika, Kapljenje u prahu za bakper i epoksidne smole. Pogodni su za blokiranje, spojnica, razdvajanje, filtriranje, Zaobići vremenski krug i idealan za upotrebu u telekomunikacijskoj opremi, Oprema za obradu podataka, Industrijski instrument, Automatski upravljački sustavi i drugu opću elektroničku opremu.
