Axial Lead Solid Tantalum Capacitors ▏Metal Case | Cbdy

Yleiset ominaisuudet

Lämpötila -alue: – 55℃～＋125℃(> 85℃ with rated voltage derating).

Kapasitanssitoleranssi:± 20% ,± 10%

DC-vuoto:20℃ lO≤0.01CrUr or 0.5uA(whichever greater)

Diss ipation fac tor (20℃): seetable1

Tempera ture Cha rac teris tics : Seetable1

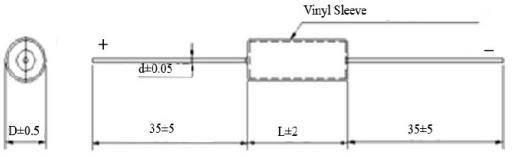

Piirustus , Dimensions and Max Weight

Case code	Weight Max(g)	D±0.5(mm)	L±2 (mm)	d±0,1(mm)
1	0.7	3.2	8	0.4
2	2.3	5	12	0.6
3	3.0	6	14	0.6
4	4.0	8	14	0.8
5	8.0	8	22	0.8
6	14.0	10	22	0.8

Huomautus: When enc a ps ula ted with pla s tic ins ula tion s leeve, dimens ion D inc rea s e 0 .8 mm a nd L inc rea s e 2 mm.

No minal Capacitance, Nimellisjännite , Vol tage Derating

R ated voltage	6.3	10	16	25	32	40	63	75	100
Voltage Derating	4	6.3	10	16	20	25	40	50	63
C ode C a pa c ita nc e ( μf)	4	6.3	10	16	20	25	40	50	63
1.0		0.68	0.33	0.33	0.22	0.22	0.22	0.22	0.047
1.5		1.0	0.47	0.47	0.33	0.33	0.33	0.33	0.068
2.2 1.5			0.68	0.68	0.47	0.47	0.47	0.1
1 3.3 2.2			1.0	1.0	0.68	0.68		0.15
4.7		3.3	1.5	1.5	1.0	1.0			0.22
6.8		4.7	2.2	2.2	1.5				0.33
10		6.8	3.3
15		10	4.7	3.3	2.2	1.5	0.68	0.47
22		15	6.8	4.7	3.3	2.2	1.0	0.68	0.47
33		22	10	6.8	4.7	3.3	1.5	1.0	0.68
47		33	15	10	6.8	4.7	2.2	1.5	1.0
		47	22	15	10	6.8	3.3	2.2	1.5
68			33					3.3
3		68	47	22	15	10	4.7	4.7
100		100	68	33		15
150		50	100	47	22	22	6.8		2.2
220				68	33	33	10		3.3
5 330		220	150	100	47	47	15
470		330	220		68		22
680 6		470	330	150	100	68	33
1000		680	470	220	150	100	47

Ominaisuudet

CBDY S eries metal- cased solid tantalum electrolytic capacitors with polar axial
leads are characterized in small size wide opeerating temperature range, vakaat suoritukset, korkea luotettavuus ja pitkä käyttöikä,
CBDY S eries meets the requirements of Chin se National S tandard GB8583- 88, widely used in instruments meters and other
electronic equipment for military and civil applications

RoHS-yhteensopiva
